Arcade Power

PS3 and XBOX 360 Controller Dual Mod

Tutorial #6

Here is a list of materials and tools needed in this tutorial:

• An existing arcade joystick setup
• Madcatz 4716 XBOX 360 Controller Pad
• Cthulhu PC/PS3 Board
• Toodles IMP Switch
• Soldering iron
• Wires
• Cable ties
• Wire cutter
• Screwdriver

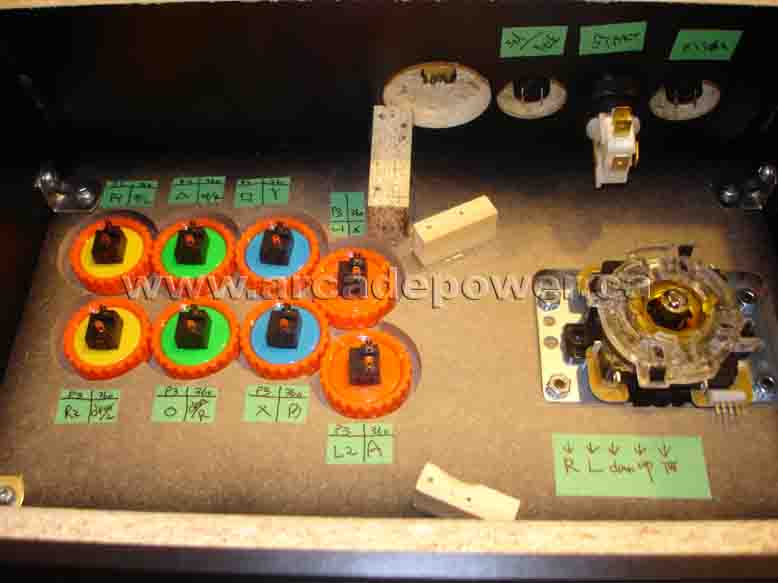

To begin, mark down the PS3 and XBOX 360 button configurations for your existing joystick setup.

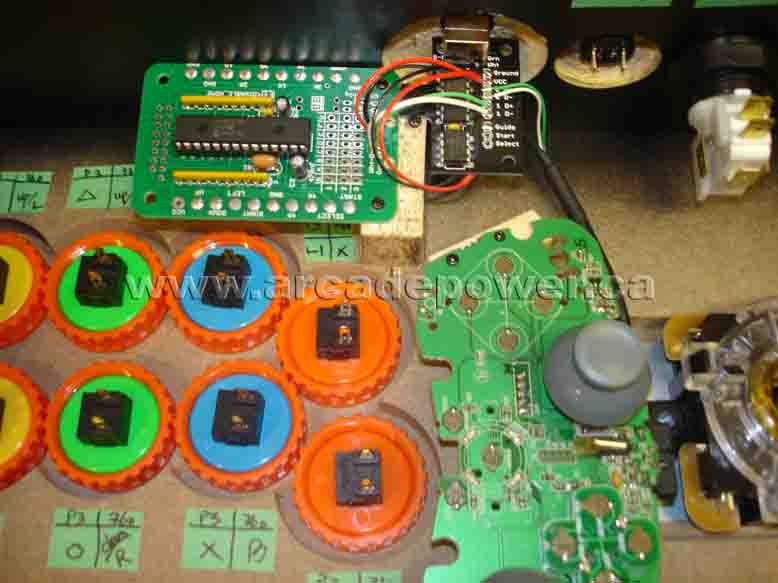

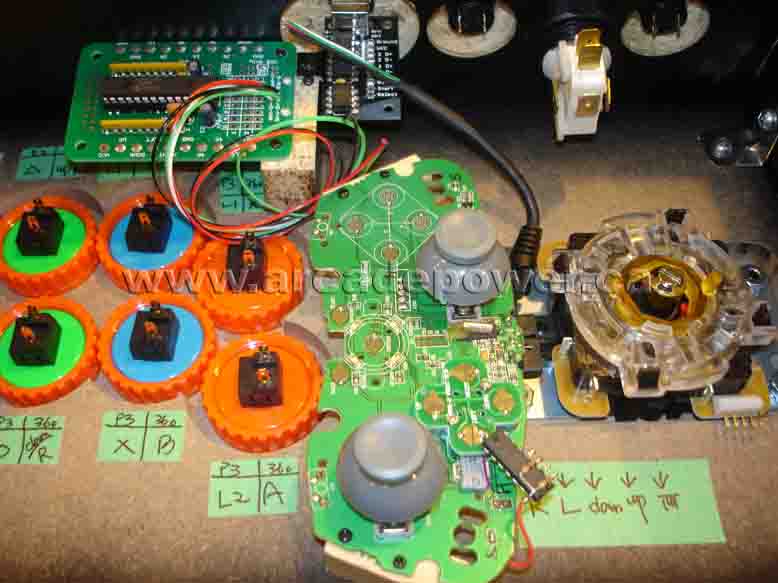

Prepare the Madcatz 4716 controller board as well as the Cthulhu PS3 board and IMP switch.

Set the three boards on the joystick setup.

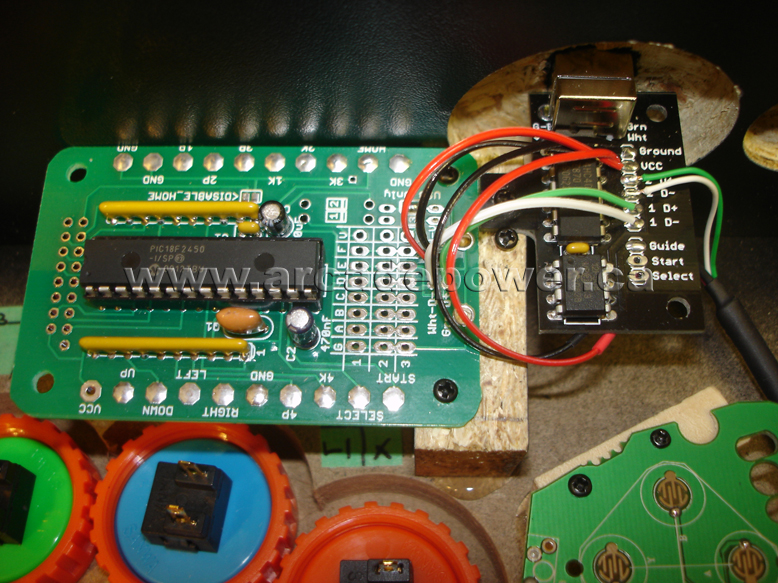

Hook up the USB wires of both the Cthulhu PS3 board and the Madcatz 4716 board to the IMP switch.

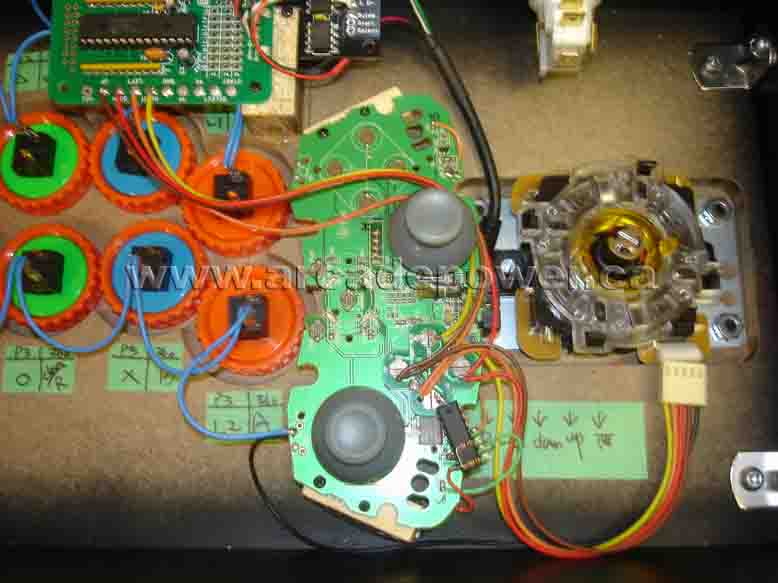

Hook up the ground wires and the Happ/Sanwa joystick.

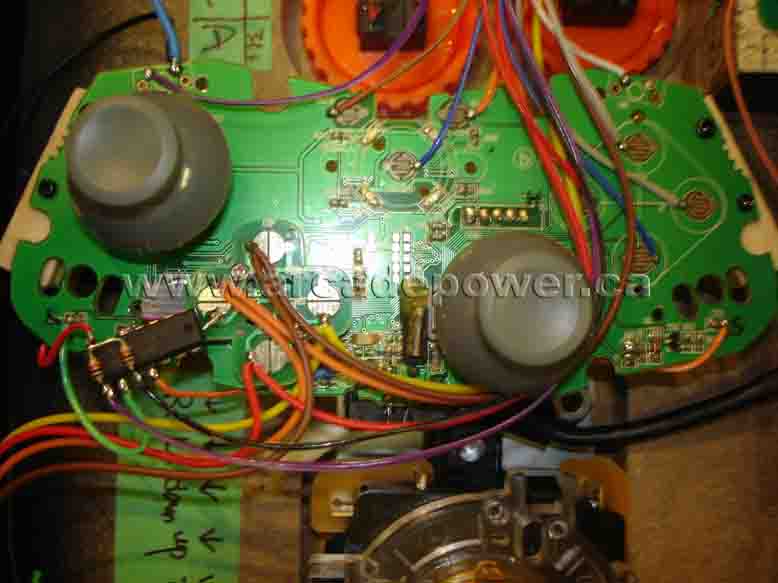

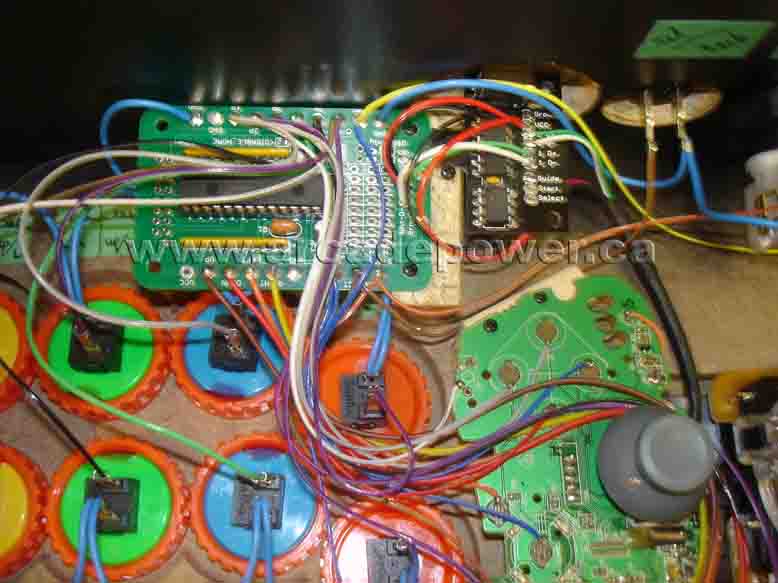

Hook up the wires for the rest.

Wrap the wires with cable ties to make it more tidy.

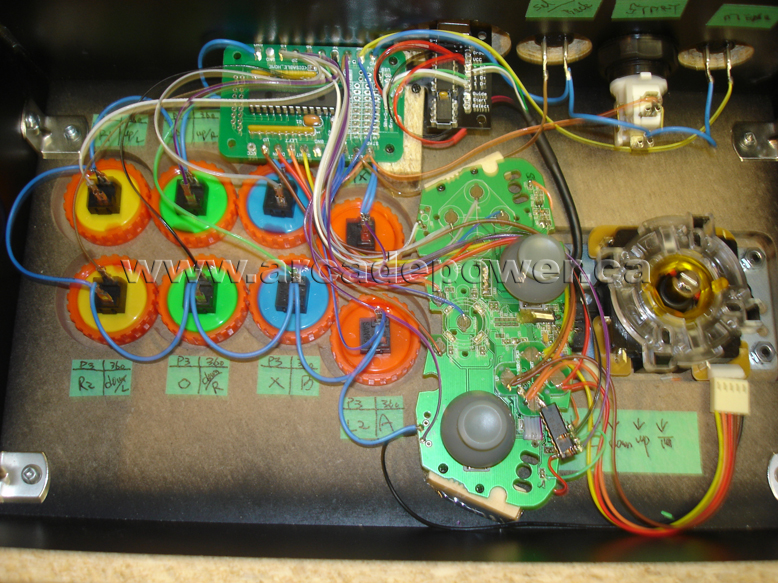

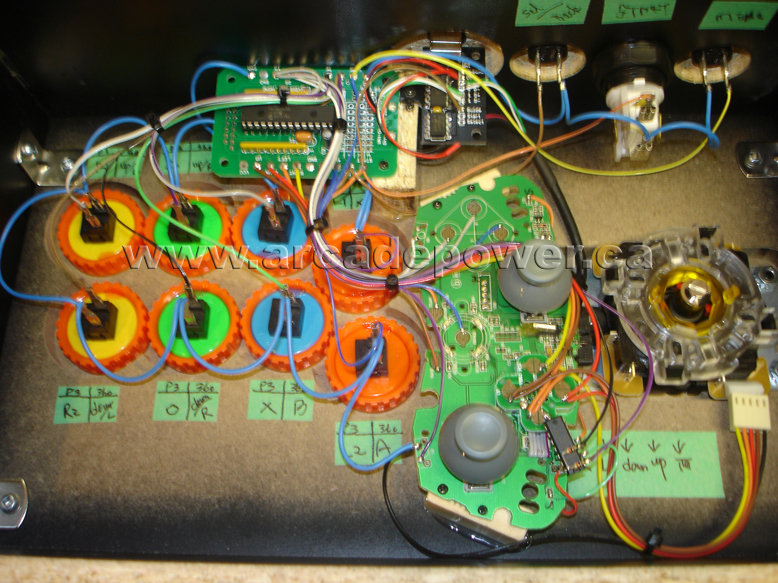

The PS3 and XBOX 360 controller dual mod is now complete.
