Custom-Made Street Fighter Twin Arcade Joystick

Tutorial #9

One of our customers requested us to make him a twin arcade joystick to be put on to his arcade cabinet. He had given us the measurements and the picture that he wants laminated. This is our first attempt to build a joystick this large.

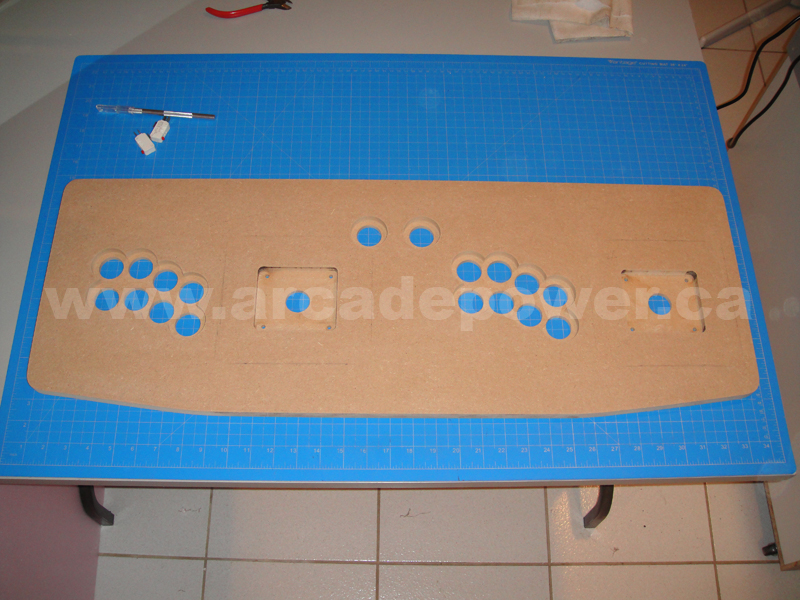

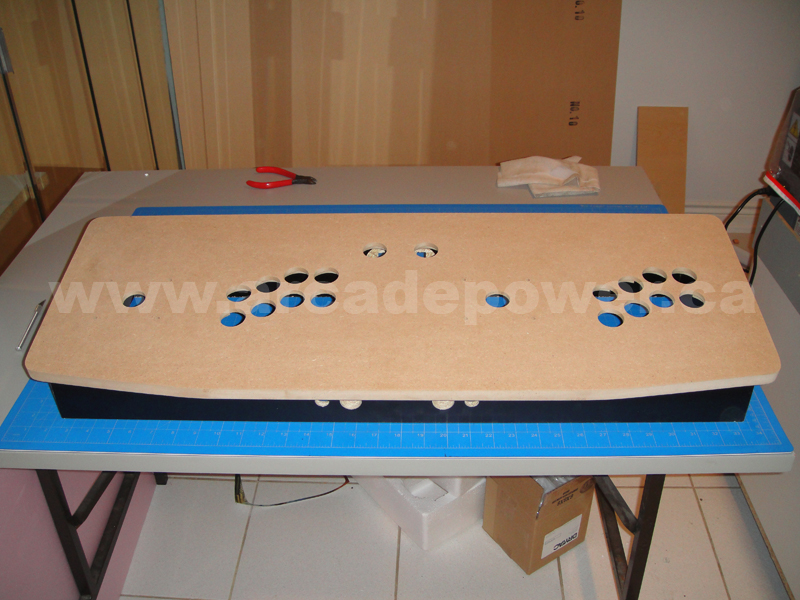

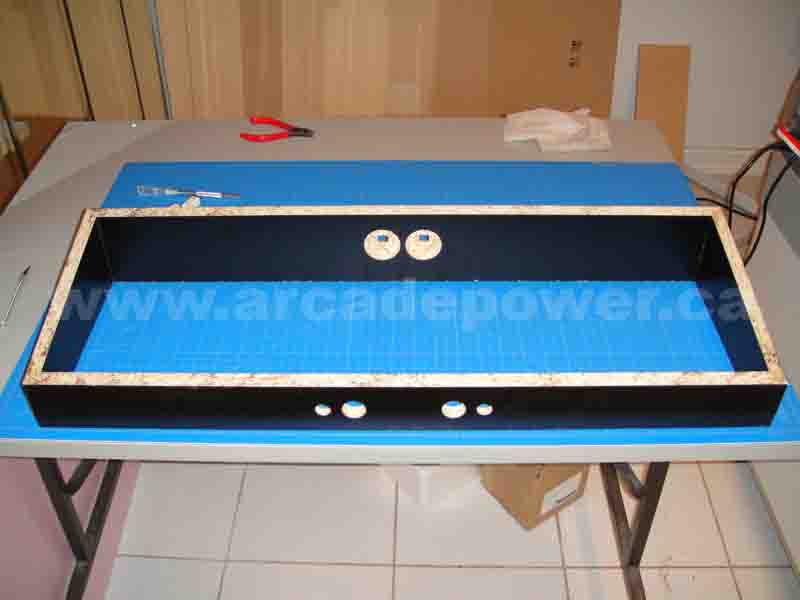

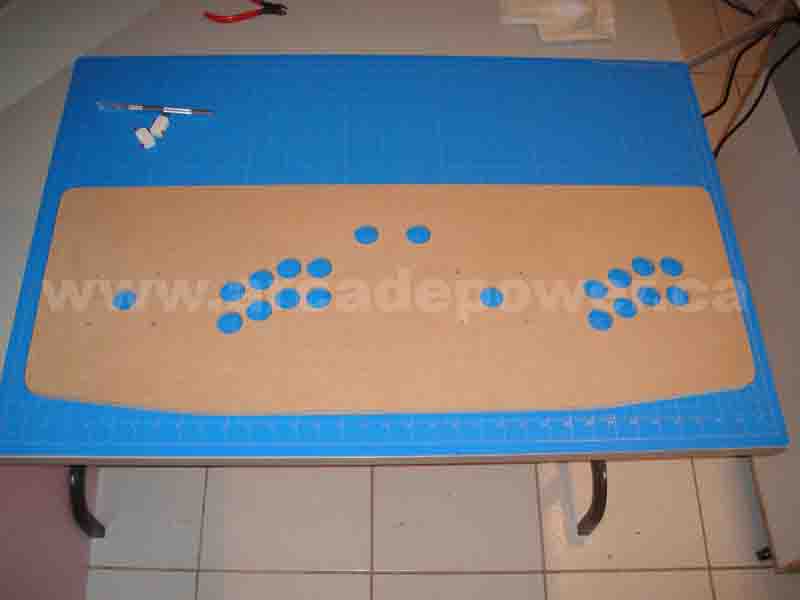

We needed to construct a large base and the top panel for the joystick first.

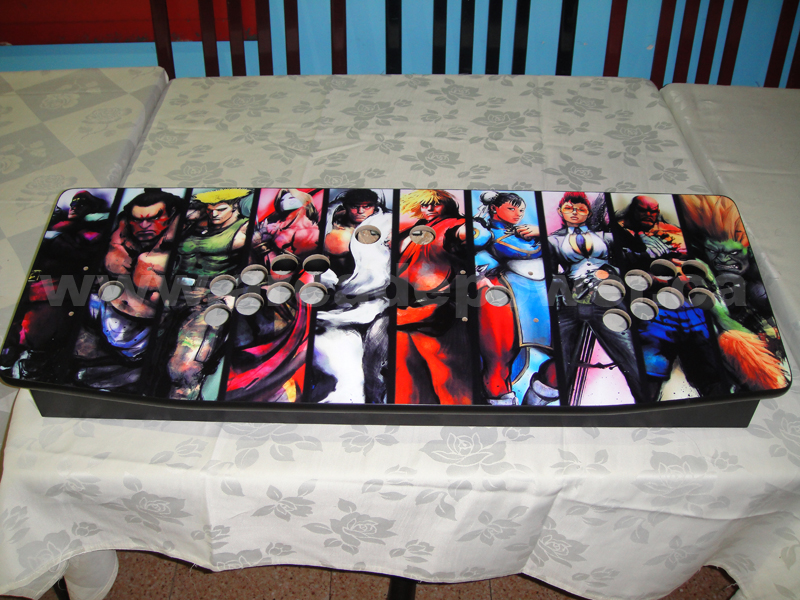

We then laminated the picture that he provided onto the top panel of the joystick.

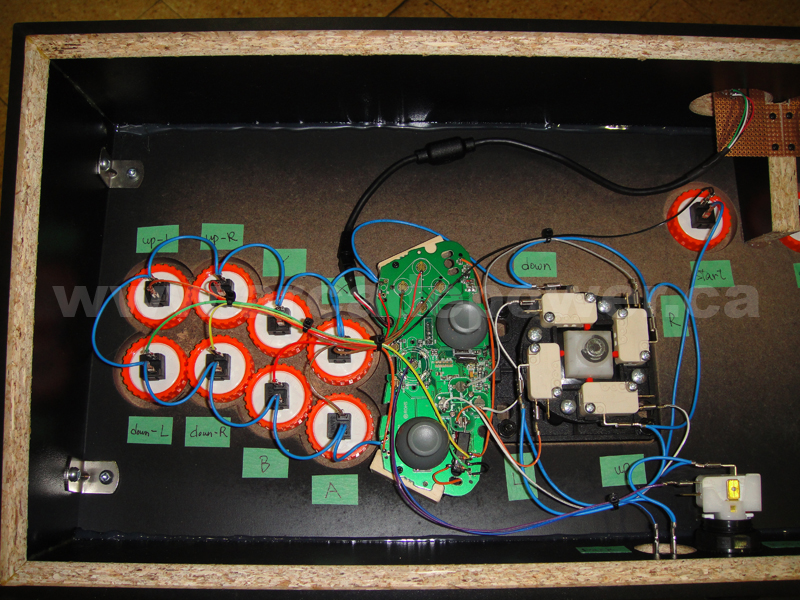

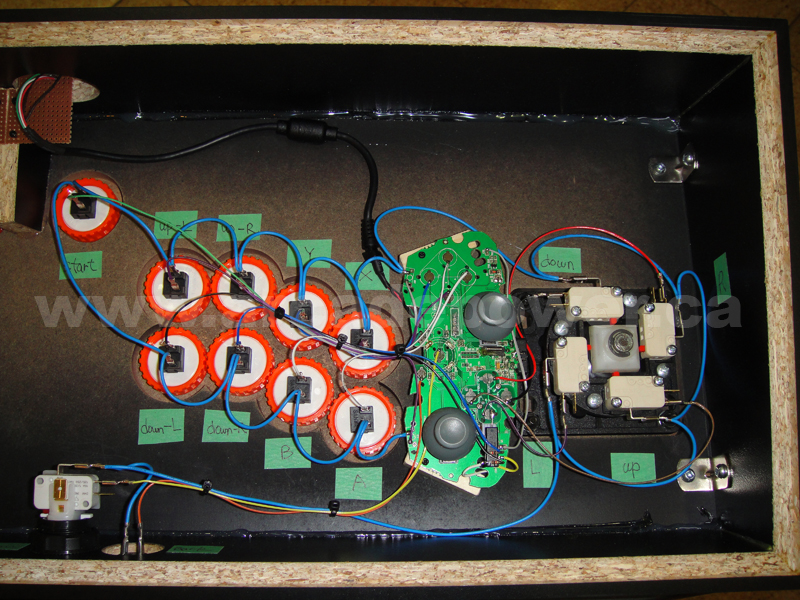

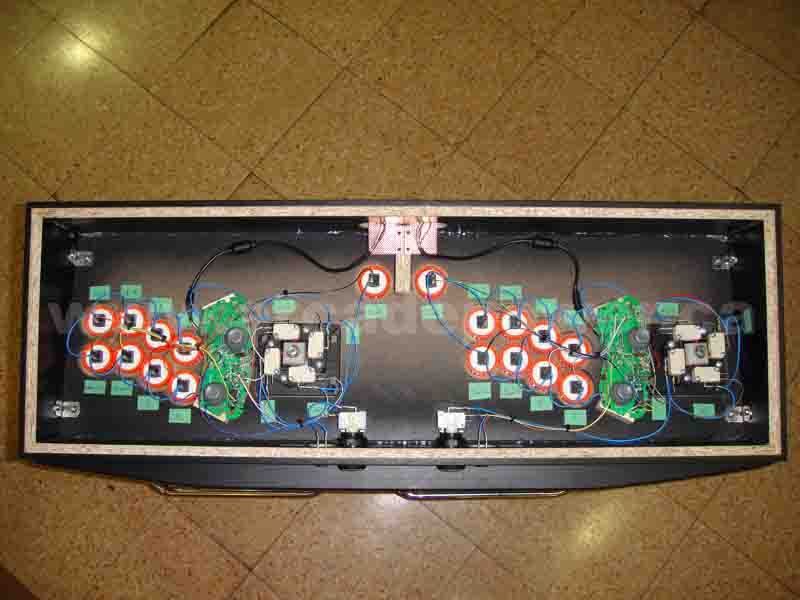

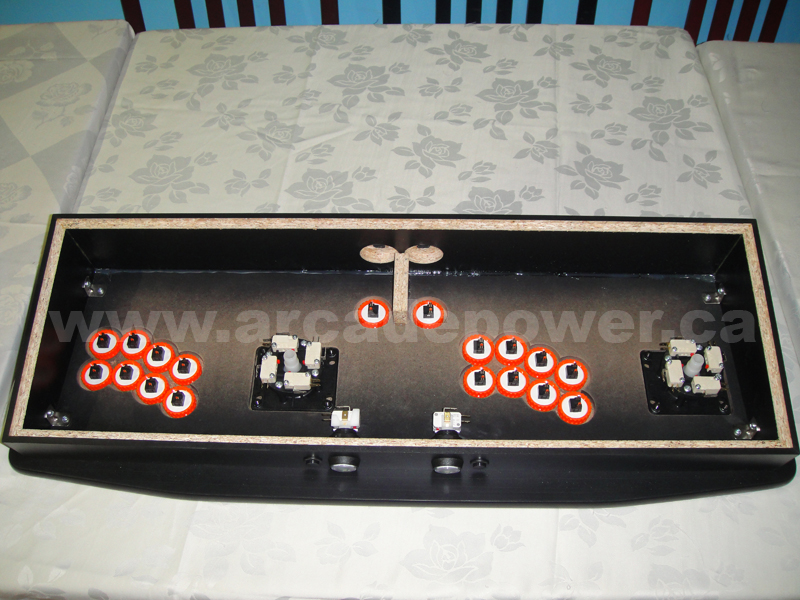

The joysticks and buttons are then installed. As per the customer request, the twin joystick will be compatible with XBOX 360. Two Madcatz controllers are installed into the joystick.

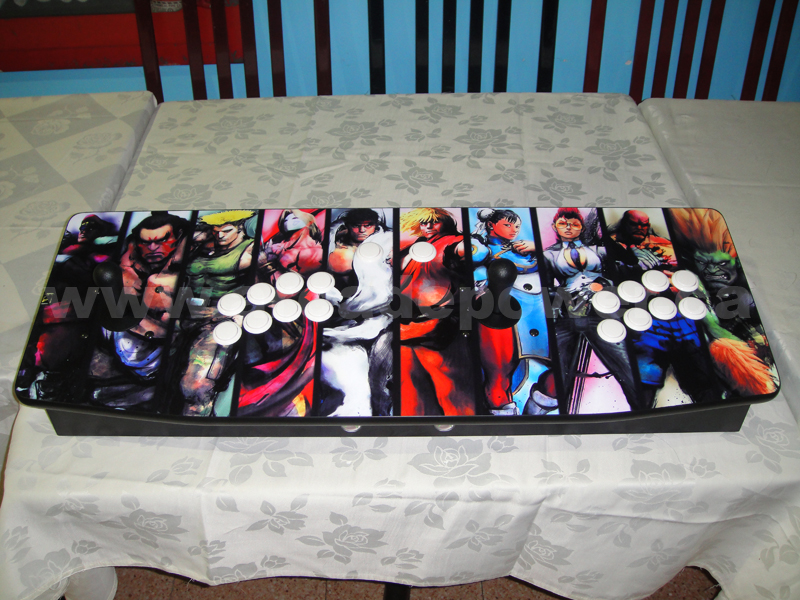

Our work is finally complete. We are extremely satisfied with how this turned out.
